Metal Plate Embossers

Matica C410
Matica C410 Metal Plate Embosser

The Matica C410 System is designed for mid-volume to high-volume use where data is input through a PC computer controller. The C410 Series input hopper allows for metal plates to be automatically fed into the embosser. These would be automatically embossed during the metal plate's movement through the system so that a complete embossed metal plate would be produced during one cycle of the system. The embossed metal plates can be used for many applications including product identification tags, pet licenses and areas where durability and longevity are needed.

Features

  • Speed: Up To 350 pph
  • Options: Variable Plate Size
  • Data Input:RS232 Serial Port
Specs

  • Height: 42 cm
  • Depth: 60 cm
  • Width: 91 cm
  • Weight: 70 kg
  • Electrical: 100v - 240v 50/60 Hz

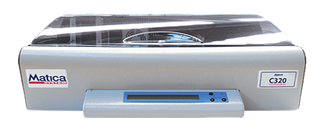

Matica C320
Matica C320 Metal Plate Embosser

The Matica C320 System is designed for lower-volume use where data is input through a PC computer controller. The C320 Series input hopper allows for metal plates to be automatically fed into the embosser. These would be automatically embossed during the metal plate's movement through the system so that a complete embossed metal plate would be produced during one cycle of the system. The embossed metal plates can be used for many applications including product identification tags, pet licenses and areas where durability and longevity are needed.

Features

  • Speed: Up To 80 pph
  • Options: Variable Plate Sizes Data Input: RS232 Serial Port
Specs

  • Height: 26 cm
  • Depth: 49 cm
  • Width: 65 cm
  • Weight: 34 kg
  • Electrical: 100v - 240v 50/60 Hz

Matica C310
Matica C310 Metal Plate Embosser

The Matica C310 System is designed for Dog Tags or Medical Alert Tags where data is input through a PC computer controller. The C310 Series input hopper allows for metal plates to be automatically fed into the embosser. These would be automatically embossed during the metal plate's movement through the system so that a complete embossed metal plate would be produced during one cycle of the system.

Features

  • Speed: Up To 100 pph
  • Options: Dog Tags, Medical Alert Data
  • Input: RS232 Serial Port
Specs

  • Height: 22 cm
  • Length: 471 cm
  • Width: 47 cm
  • Weight: 17 kg
  • Electrical: 100v - 240v 50/60 Hz
