The Datacard 9000 Series System is Plastic Card Personalization Equipment that is designed for production volume use (several thousand cards per run) where data is input through a built-in PC computer controller. The 9000 Series input hopper allows for cards to be automatically fed into the embosser. Color tipping of the embossed characters, encoding of the magnetic stripe and thermal printing of text, barcodes and logos are available on the Datacard 9000 Series Systems. These would be automatically done during the card's movement through the system so that a complete card would be produced during one cycle of the system. Also available are Smartcard modules, photo ID modules, inserters, stuffers, labelers and many other features.
Module Options to Configure Your System: Magnetic Stripe Encoding Module HiCo/LoCo 3 Track, Front UltraGraphics Module - 240dpi or 300dpi, Rear UltraGraphics Module - 240dpi or 300dpi, Front Color Module - 240dpi or 300dpi, Rear Color Module - 240dpi or 300dpi, Overlay Module, CardGuard Module, SmartCard Module - Up To 7 Stations, SmartCard Contactless Module, Laser Graphics Module, Emboss Module – 700 cph, Topping Module, Label Module, Front or Rear Indent Module, Verification Module, Dual Input Hopper Module, Card Buffer Module, High Speed UltraForm Card Attaching System, Standard Speed UltraForm Card Attaching System, UltraPac Inserting System - 2 to 6 Stations.
w/o Modules
Height: 49"
Depth: 34"
Width: 40"
Weight: 405 lbs.Electrical: 240v 50/60 Hz

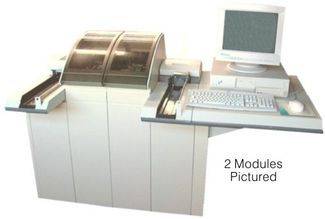

The Datacard 7000 Series Systems are designed for production volume use (several thousand cards per run) where data is input through a built-in PC computer controller. The 7000 Series input hopper allows for cards to be automatically fed into the embosser. Color tipping of the embossed characters, encoding of the magnetic stripe and thermal printing of text, barcodes and logos are available on the Datacard 7000 Series Systems. These would be automatically done during the card's movement through the system so that a complete card would be produced during one cycle of the system. Also available are Smartcard modules, photo ID modules, inserters, stuffers, labelers and many other features. A maximum of 6 modules is allowed.
Module Options to Configure Your System: Magnetic Stripe Encoding Module HiCo/LoCo 3 Track, Front UltraGraphics Module - 240dpi or 300dpi, Rear UltraGraphics Module - 240dpi or 300dpi, Front Color Module - 240dpi or 300dpi, Rear Color Module - 240dpi or 300dpi, Overlay Module, CardGuard Module, SmartCard Module - Up To 7 Stations, SmartCard Contactless Module, Laser Graphics Module, Emboss Module - 700cph, Topping Module, UltraLabel Module, Front or Rear Indent Module, Verification Module, Dual Input Hopper Module, Card Buffer Module, High Speed UltraForm Card Attaching System, Standard Speed UltraForm Card Attaching System, UltraPac Inserting System - 2 to 6 Stations.
w/o Modules
Height: 49"
Depth: 34"
Width: 40"
Weight: 405 lbs.Electrical: 240v 50/60 Hz
The Datacard MX6100/6000 Series Systems are designed for production volume use (several thousand cards per run) where data is input through a built-in PC computer controller. The MX6100/6000 Series input hopper allows for cards to be automatically fed into the embosser. Color tipping of the embossed characters, encoding of the magnetic stripe and thermal printing of text, barcodes and logos are available on the Datacard MX6100/6000 Series Systems. These would be automatically done during the card's movement through the system so that a complete card would be produced during one cycle of the system. Also available are Smartcard modules, photo ID modules, inserters, stuffers, labelers and many other features.
Module Options to Configure Your System: Magnetic Stripe Encoding Module HiCo/LoCo 3 Track, Card Cleaning Module, Front UltraGraphics Module - 300dpi, Rear UltraGraphics Module - 300dpi, Front Color Module - 300dpi, Rear Color Module - 300dpi, VHD Color Module, Overlay Module, CardGuard Module, SmartCard Module - Up To 11 Stations, SmartCard Contactless Module, Laser Graphics Module, Emboss Module, Topping Module, Label Module, Front or Rear Indent Module, Verification Module, Dual Input Hopper Module, Card Buffer Module, MXD Card Attaching System, MXI Inserting System - 2 to 6 Stations.
Maximum number of modules: 20
Print Options: Text, Barcodes, Logos, Photos & Laser
w/o Modules
Height: 49"
Depth: 34"
Width: 40"
Weight: 405 lbs.Electrical: 240v 50/60 Hz
The Datacard MXD Card Affixer / Folder is designed for production volume use (several thousand cards per run) where data is input through a built-in PC computer controller on the MX6xxx System. These cards would be automatically attached during the card's movement through the MXD system so that a complete card and folded carrier would be produced during one cycle of the system. Also available is a MXi Envelope Insertion System that allows the card and folded carrier to be inserted into an envelope.
Electrical: 230v 50/60 Hz
The Datacard MXi Envelope Insertion System is designed for production volume use (several thousand cards per run) where data is input through a built-in PC computer controller on the MX6xxx System. The folded carrier with card(s) are automatically inserted into an envelope so that a completed card/carrier/envelope would be produced during one cycle of the system.

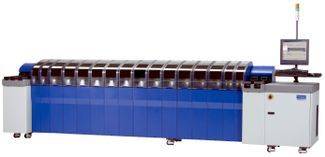

The Datacard Maxsys Series Systems are designed for production volume use (several thousand cards per run) where data is input through a built-in PC computer controller. The Maxsys Series input hopper allows for cards to be automatically fed into the embosser. Color tipping of the embossed characters, encoding of the magnetic stripe and thermal printing of text, barcodes and logos are available on the Datacard Maxsys Series Systems. These would be automatically done during the card's movement through the system so that a complete card would be produced during one cycle of the system.
Module Options to Configure Your System: Input Hopper, Card Cleaning Module, Magnetic Stripe Encoding Module HiCo/LoCo 3 Track, Front UltraGraphics Module - 300dpi, Rear UltraGraphics Module - 300dpi, Emboss Modules, Topping Module, Label Module, Front or Rear Indent Module, Output Stacker.
w/o Modules:
Height: 49"
Depth: 34"
Width: 40"
Weight: 405 lbs.
Electrical: 240v 50/60 Hz
The Datacard UltraForm Card Affixer w/printer is designed for production volume use for attaching plastic cards to a paper carrier (letter, etc.). The laser printed carrier forms are matched to the embossed, thermal printed, encoded plastic cards and then the cards are attached to the carriers with a transparent, non-residue adhesive. By combining the Datacard 9000/7000, the Datacard UltraForm and the Datacard UltraPac into one system this allows a one pass process that helps prevent errors such as sending the wrong card/inserts to your customer.
Module Options to Configure Your System: High Speed UltraForm Card Attaching System Up To 1,200 FPH Standard Speed UltraForm Card Attaching System Up To 700 FPH.
Height: 46"
Length: 125"
Width: 38"
Weight: 134.6 lbs.
Electrical: 240v 50/60 Hz
The Datacard UltraPac Inserter is designed for production volume use for inserting a laser printed carrier with attached card(s) into an envelope. Additional inserts may be inserted into the envelope and then finally sealed and ready for postage. By combining the Datacard 9000/7000, the Datacard UltraForm and the Datacard UltraPac into one full system this allows a one pass process that helps prevent errors such as sending the wrong card/inserts to your customer.
Module Options to Configure Your System: UltraPac Inserting System - 2 to 6 Stations.
Height: 48"
Length: 78"
Width: 49.5"
Weight: 950 lbs.
Electrical: 240v 50/60 Hz

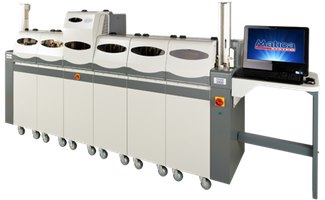

The Matica S7000 Series Systems are designed for production volume use (several thousand cards per run) where data is input through a PC computer controller. The S7000 Series input hopper allows for cards to be automatically fed into the system. Color tipping of the embossed characters, encoding of the magnetic stripe and thermal printing of text, barcodes and logos are available on the Matica S7000 Series Systems. These would be automatically done during the card's movement through the system so that a complete card would be produced during one cycle of the system. Also available are Smart Card modules, photo ID modules, inserters, stuffers, labelers and many other features.
Module Options to Configure Your System: Magnetic Stripe Encoding [HiCo-LoCo 3-Track], Monochrome & Color Printing - 300dpi, Flip-over Station, Contact Chip Encoding, Contactless Chip Encoding, Laser Engraving, Front or Rear Indent, Color Topping, Activation Labeling, Advanced Barcode Reader Station, Integrity Check, Dual Input Hoppers, Maticard Pro Software.
Height: Varies by Config. Depth: Varies by Config. Width: Varies by Config. Weight: Varies by Config. Electrical: 240v 50/60 Hz
The Matica MS7000 Card Mailing Systems offers affordable solutions for direct card mailing and fulfillment applications. Can be used as a stand alone unit or integrated with the Matica S7000 system. This is designed for production volume use (several thousand cards per run). Also included is the DS-100 folder/inserter so that the completed package has the card, letter and inserts in the envelope ready for mailing.
Height: 150 cm
Length: 170 cm
Width: 204 cm
Weight: 205 kg
Electrical: 100v-240v 50/60 Hz
