Diagenics Cards Inc.
Card Counters

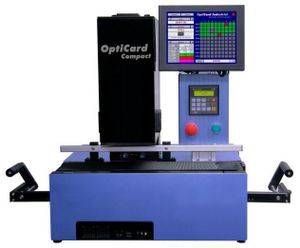

OptiCard Compact Card Counter
OptiCard Compact Card Counter

The OptiCard Compact Card Counter is the most advanced digital counter for all ISO cards. User-friendly operation, full counting report, Report Viewer program including viewing, editing, printing & exporting data to CSV/TXT, easy software upgrade, remote access option for upgrade & maintenance, user guide (PDF), and more. On screen information includes Card type, image & description, quantity to verify, user/batch/job info, up to 100 consecutive counting results, statistical information, and more. The OptiCard Compact can count PVC, ABS, PET, PC, Polyester, paper, laminated paper, metal, and more; white, black, colored, clear, translucent; plain, printed, embossed, embedded, or injection molded cards.

Features

  • Speed: 500 cards 2-6 Sec.
    Data: 2 USB, 1 LAN, 1 RS232
    Counts: Full or partial sleeve
Specs

  • Height: 65.6 cm
    Depth: 48.6 cm
    Width: 56 cm
    Weight: 45 kg
    Electrical: 220v 50 Hz or 110v 60 Hz


JC-3200C Card Counter
JC-3200C Card Counter

The JC3200C Card Counter is designed to provide an accurate count of nearly any opaque material plastic cards. It automatically verifies the count of embossed and non-embossed cards. Includes accumulator for totaling multiple counts. Covers the most standard card thicknesses: .009" to .040" & various opaque card types. The JC-3200C can be connected to an optional compressed air supply allowing it to count thin plastic and paper cards.

Options to Configure Your Equipment:
Compressed air supply to count thin plastic and paper cards, Optional Interface: RS-232C

Features

  • Counting Speed: 500 Cards / 4 Sec.
    Count Totals: Verbal Count Reporting; Large LCD Display
Specs

  • Height: 11"
    Depth: 8.74"
    Width: 26"
    Weight: 40 lbs.
    Electrical: 120v-240v 50/60 Hz


EMP 1100C Handheld Card Counter

EMP 1100C Handheld Card Counter

The EMP 1100C Handheld Card Counter is designed with a digital processing circuit and electro-optical technology which makes it functional and practical. It can count non-transparent cards made of various materials with thickness ≥0.48mm.

Features

  • Keys: 2 Scan Keys for Left/Right Hand
    Accumulation: Automatic or Manual
Specs

  • Length: 175mm
    Depth: 36mm
    Width: 70mm
    Weight: 250 g.
    Battery: LI 3.7V /1000mAh


Primus C-12 Handheld Card Counter

Primus C-12 Handheld Card Counter

The Primus C-12 Handheld Card Counter is designed with a digital processing circuit and electro-optical technology which makes it functional and practical. It can count non-transparent cards made of ABS, PVC, PC, PET, Styrene and many more materials with thickness 0.38mm - 2mm. The Primus TC-12DT Handheld Card Counter counts non-transparent cards with data recording. The Primus TC-12DT Handheld Card Counter counts many types of translucent, plain, printed, colored plastics, black core and non-transparent cards with data recording.

Features

Keys: 2 Scan Keys for Left/Right Hand
Accumulation: Automatic or Manual
Specs

Length: 160mm
Depth: 30mm
Width: 75mm
Weight: 290 g.
Battery: LI 3.7V /1000mAh


Spartanics Card Counter

Spartanics 640 Card Counter

The Spartanics 640 Card Counter is designed to provide an accurate count of plastic cards in or out of trays, sleeves or boxes. It automatically verifies the count of embossed and non-embossed cards. Accumulator for totaling multiple counts. RS232 serial port for connecting to PC computer to store audit trail data. Centronix parallel port to interface with a Dot Matrix printer. Counts a wide variety of card thicknesses from .010" to .080". This includes the newer "thin" phone cards as well as traditional "credit card" type cards.

Available Refurbished or New
Options to Configure Your Equipment: Foot Pedal Control

Features

Count Totals: Large LCD Display
Accumulator
"Self-Test" at Startup
Specs

Height: 11.5"
Depth: 11.5"
Width: 31"
Weight: 34 lbs.
Electrical: 120v-240v 50/60 Hz


Spartanics 620 Card Counter

Spartanics 620 Card Counter

The Spartanics 620 Card Counter is designed to provide an accurate count of plastic cards in or out of trays, sleeves or boxes. It automatically verifies the count of embossed and non-embossed cards. Includes accumulator for totaling multiple counts. RS232 serial port for connecting to PC computer to store audit trail data. Centronix parallel port to interface with a Dot Matrix printer. Covers the most standard card thicknesses: .024" to .032".

Available Refurbished or New
Options to Configure Your Equipment: Foot Pedal Control

Features

Count Totals: Large LCD Display
Accumulator
”Self-Test" at Startup
Specs

Height: 11.5"
Depth: 11.5"
Width: 28"
Weight: 34 lbs.
Electrical: 100v-240v 50/60 Hz


Dynetics 5300 Card Counter

Dynetics 5300 Card Counter

The Dynetics 5300 Card Counter is designed to provide an accurate count of plastic cards in or out of trays, sleeves or boxes. It automatically verifies the count of embossed and non-embossed cards in either CR-80 or CR-50 format. Accumulator for totaling multiple counts. Counts a box of cards at the rate of 500 cards in 2 seconds. Automatic self-diagnostic test at start-up.

Available Refurbished or New

Features

Speed: 250 Cards/Sec.
Accumulation: Automatic or Manual
Counts: Full or Partial Sleeve
Specs

Height: 6"
Depth: 12.5"
Width: 23"
Weight: 21 lbs.
Electrical: 120v 60Hz
